Introduction
Refrigeration compressors play a vital role in petrochemical and refining operations. These critical machines enable cooling, condensation, and liquefaction of hydrocarbons and volatile gases. Without them, gas recovery, LPG stabilization, and cryogenic separations would be impossible. However, operating these compressors presents significant challenges; for instance, flammable refrigerants pose fire and explosion risks. Also, high pressures and continuous service require rigorous maintenance. Temperature variations and process fluctuations test equipment limits daily. The complexity of these systems demands sophisticated control strategies, rigorous safety protocols, and continuous performance optimization to ensure reliable operation. In this article, we will explore the control strategies, safety requirements, and optimization techniques that keep refrigeration compressors operating safely and efficiently.
Understanding Refrigeration Compressors in Refining
Purpose and Operating Principles of Refrigeration Compressors in Refining
Refining transforms crude oil into usable products through distillation, cracking, and separation processes that generate gases requiring capture and cleanup. Refrigeration enables critical operations by cooling gases to their liquid state through controlled temperature reduction for gas recovery, LPG stabilization, olefins production, and cryogenic separations.
Refrigeration compressors drive this cooling cycle by compressing refrigerant gas to high pressure and temperature. The hot compressed refrigerant releases heat before expanding and chilling to absorb heat from refinery streams. This continuous cycle triggers condensation and liquefaction while maintaining precise temperature control for product purity..
Types of Refrigeration Compressors
Different compressor designs serve different roles based on process requirements and operational demands.
- Centrifugal compressors are well-suited to large-scale applications with high flow rates. They provide smooth operation, low vibration, and high efficiency. These units excel with low-molecular-weight refrigerants such as ethylene and propane.
- Screw compressors deliver reliability in medium-flow scenarios. These positive-displacement machines handle variable loads effectively via slide-valve control. Screw compressors tolerate liquid slugs better than centrifugal units. They perform well with mixed refrigerants and moderate pressure ratios.
- Reciprocating compressors excel in high-pressure, low-flow applications requiring precise control. They suit applications that require frequent starts and stops or variable refrigeration demands.
Key Design Considerations of Refrigeration Compressors in Refining
Refrigerant Selection and Process Integration
Refrigerant selection balances thermodynamic efficiency with material safety, with hydrocarbons preferred for their low global warming potential and oil solubility that simplifies lubrication management.
Common Refrigerants in Refining
- Propane (R-290) is used in medium-temperature applications, with a boiling point of -44°F, typically chilling process streams to approximately -40°F.
- Ethylene (R-1150) enables cryogenic operations with a boiling point of -154.7°F. It is usually used in the bottom stage of a cascade system, condensed by a propane loop.
- Mixed Hydrocarbon Blends: Used in LNG plants because they do not boil all at once at a single temperature. Instead, they evaporate gradually over a “temperature glide.” As the natural gas cools, the refrigerant warms at nearly the same rate. This close alignment (or matching of the cooling curve) prevents wasted energy and makes the heat-exchange process much more efficient than with a single-component refrigerant.
Influence on Equipment Design
The physical and chemical properties of these gases dictate the engineering of the entire refrigeration loop:
| Design Area | Influence of Refrigerant Properties |
| Compressor Sizing | Vapor Density: High latent heat allows for lower mass flow. However, ethylene’s lower density than propane requires higher volumetric flow rates, necessitating larger impellers or higher speeds to achieve the same discharge pressure. |
| Metallurgy | Boiling Point: Ethylene operates at cryogenic levels where carbon steel becomes brittle. Design must specify 300-series stainless steel or 9% nickel steel to meet Minimum Design Metal Temperature (MDMT) requirements and prevent brittle fracture. |
| Sealing Systems | Solubility and Flammability: Hydrocarbons dilute lubricating oil, lowering its viscosity. Under API 617 standards, dry gas seals (using nitrogen buffers) are required to isolate flammable process gas from bearings and the atmosphere. |
| Heat Exchangers | Thermal Conductivity: While hydrocarbons have excellent heat transfer coefficients, mixed refrigerants require specialized exchangers, such as Plate-Fin (BAHX), to handle multi-phase flow and optimize the temperature approach. |
Pressure and Temperature Conditions
Refinery refrigeration systems operate across a wide range of conditions, from ambient temperatures at condensers to cryogenic levels in recovery loops. Discharge pressures can reach 400 psig depending on cooling media, creating high-stress environments for rotating equipment. Compressors must handle daily off-design scenarios that challenge their operational limits:
- Ambient fluctuations during hot weather increase cooling water temperatures, raising discharge pressures and requiring adequate head capability to maintain flow
- Process demand spikes from upstream feedstock surges send rapid heat loads requiring immediate response to prevent catastrophic surge conditions.
- Turndown requirements during lower capacity operations use inlet guide vanes and variable frequency drives for efficient modulation.
Materials, Seals, and Containment
Mechanical integrity and leak prevention are critical when handling flammable hydrocarbons at high pressures. Material selection follows MDMT requirements, with cryogenic sections requiring 300-series stainless steel or 9% nickel steel to prevent brittle fracture and resist stress corrosion cracking.
Critical sealing and containment systems include:
- Dry gas seals meeting API 617 standards use pressurized nitrogen films to create physical barriers at shaft exit points
- Lube oil degassing removes absorbed hydrocarbons that dilute lubricating oil and compromise bearing protection
- Closed flare systems connect to all safety relief valves, ensuring overpressure releases burn safely at flare stacks

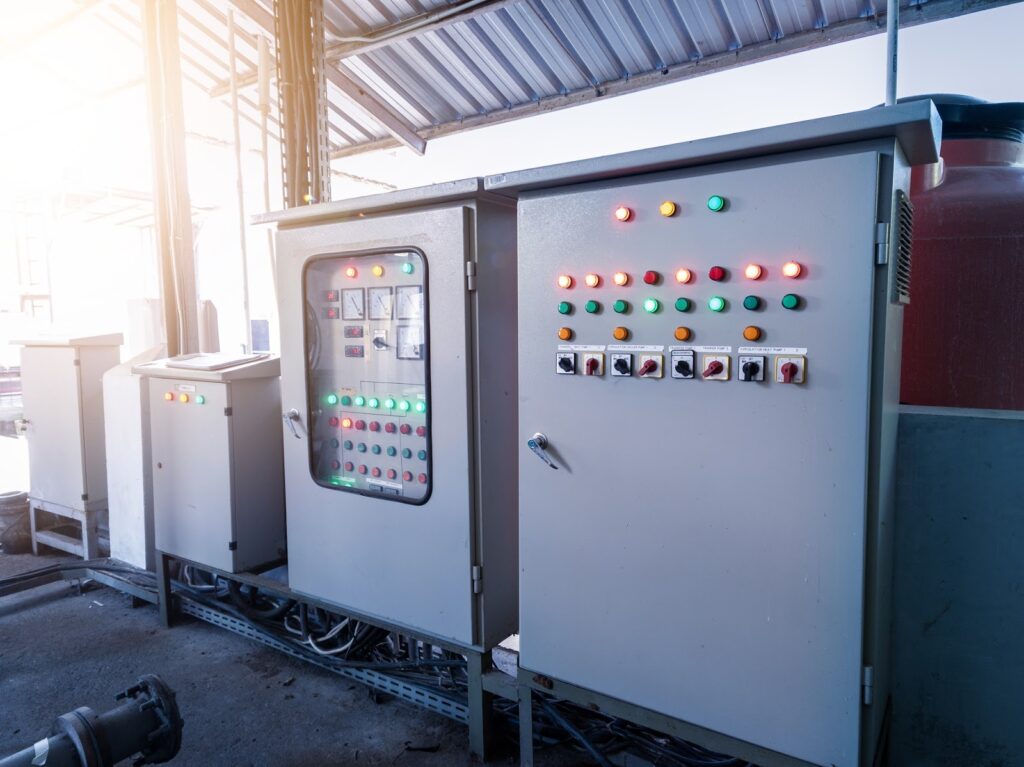

Control Strategies for Refrigeration Compressors in Refining
Surge Prevention
Surge represents the most destructive operating condition where discharge pressure exceeds the compressor’s capability to maintain forward flow. Flow reverses violently, causing severe vibration, thrust bearing damage, and potential shaft failure within seconds. Anti surge control prevents this through continuous monitoring of flow and pressures, real time surge margin calculations, fast acting recycle valves opening within one second, and automatic capacity reduction when approaching surge limits.
Temperature and Pressure Regulation
Suction pressure directly determines evaporating temperature in heat exchangers, with lower pressures enabling colder temperatures but increasing compression ratios and power consumption. Control systems balance product quality and energy efficiency by adjusting compressor capacity based on temperature feedback while maintaining pressure setpoints and preventing dangerous overpressure conditions.
Load Control and Capacity Management of Refrigeration Compressors in Refining
Variable capacity control matches refrigeration output to process demands while minimizing energy waste:
- Variable speed drives adjust compressor speed from 50% to 100% for smooth capacity modulation
- Guide vanes on centrifugal compressors change inlet flow angles to control throughput efficiently
- Slide valves in screw compressors adjust internal compression ratios for optimal part load performance
Proper load control prevents frequent starts and stops that accelerate wear and waste energy.
Fault Detection and Predictive Monitoring
Real-time monitoring detects developing problems before unexpected failures occur. Vibration sensors detect bearing wear and misalignment; bearing temperature trends indicate lubrication issues; motor current analysis detects electrical faults; and seal performance monitoring tracks leak rates to schedule maintenance proactively.
Safety Requirements in Hazardous Refrigeration Service
Risks Associated with Flammable Refrigerants
Flammable refrigerants such as propane and ethylene pose significant fire and explosion hazards in refining facilities. These hydrocarbons ignite easily when mixed with air within their flammable range. A single spark from electrical equipment can trigger catastrophic fires. Extensive refrigerant inventories amplify the consequences of accidental releases. High-pressure leaks create vapor clouds that spread rapidly across equipment areas.
Safety Instrumented Systems
Independent safety systems provide multiple layers of protection against hazardous conditions developing into incidents:
- Emergency shutdown valves isolate refrigerant inventory within milliseconds of detecting dangerous conditions
- High-pressure cutouts stop compressors automatically before pressure relief valves lift
- Temperature alarms warn operators of overheating before equipment damage occurs
- Low suction pressure trips prevent compressor damage from loss of refrigerant flow
These systems operate independently from process control to ensure reliable protection even during control failures.
Leak Detection and Containment
Fixed gas detectors continuously monitor for refrigerant concentrations in equipment areas and control rooms. Sensors are typically configured to trigger alarms at 20% of the Lower Flammable Limit (LFL), providing an early warning long before a combustible atmosphere is reached. Automated isolation systems close valves and depressurize equipment upon confirmed leak detection. Ventilation systems prevent the accumulation of flammable vapors in enclosed spaces. The compressor housing design incorporates venting paths that direct exhaust away from ignition sources.
Environmental Compliance
Regulations increasingly restrict refrigerant emissions to protect the environment and control greenhouse gas releases. Accurate inventory tracking documents refrigerant additions and losses throughout the year. Control optimization minimizes operational losses by improving seal performance and reducing venting. Flare avoidance strategies recover refrigerant during maintenance rather than burning it.
Performance Optimization
Energy Efficiency Improvements
Refrigeration compressors consume substantial electrical power, thus making energy optimization a priority for reducing operating costs. Moreover, optimizing suction conditions reduces compression ratios and lowers power requirements proportionally. Maintaining clean condenser surfaces maximizes heat rejection and reduces discharge pressures. Load control strategies prevent operating at inefficient part-load conditions unnecessarily.
Proper refrigerant charging ensures optimal performance without excessive inventory or inadequate cooling capacity. Temperature approach optimization in heat exchangers balances capital investment against operating costs. System integration coordinates multiple compressors to operate at their most efficient points.
Reliability Centered Maintenance
Refineries maximize compressor uptime by using Condition-Based Maintenance (CBM). Instead of following a rigid calendar, technicians service equipment only when data shows it is actually necessary.
This proactive approach uses three primary tools:
- Vibration Analysis: Sensors detect subtle changes in motion, identifying issues such as misalignment or bearing wear months before a breakdown.
- Oil Monitoring: Regular tests check for “wear metals” and refrigerant dilution. This serves as a health check for internal components and ensures the oil continues to protect the machine.
- Performance Trending: Computers compare current efficiency against the original factory levels. A drop in performance signals that it is time for a cleaning or overhaul.
By catching these signs early, maintenance can be scheduled during planned shutdowns. This prevents the high costs and safety risks of an unexpected equipment failure.
Integration with Digital Systems
Modern SCADA systems provide real-time visibility into compressor performance and operating conditions. Operators monitor critical parameters from control rooms and respond immediately to abnormal conditions. Historical data analysis identifies optimization opportunities and validates the benefits of implemented improvements. Remote operation capabilities enable expert support from engineering teams regardless of geographic location.
Digital platforms integrate data from multiple sources to provide comprehensive equipment health assessments.
